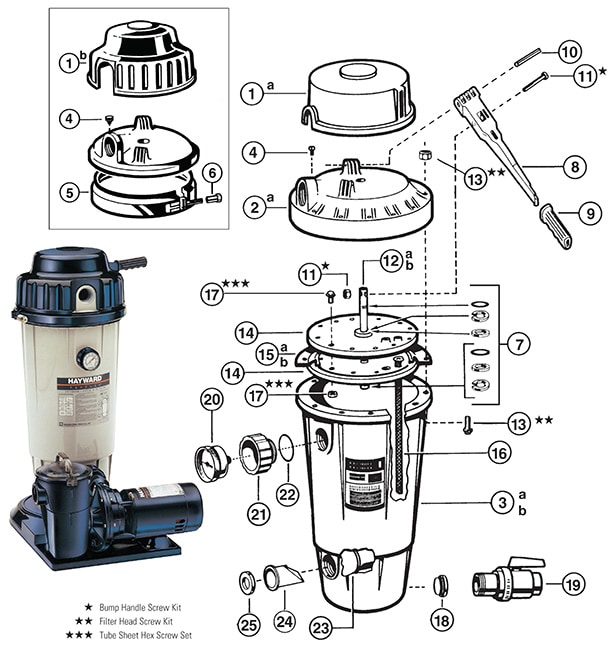

EC50A - EC50AC Extended-Cycle D.E. Filter Replacement Parts
| Ref. No. | Part No. | Description |
|---|---|---|
| 1a | ECX11156 | Bump Mechanism Cover - EC50A |
| 1b | ECX5000D | Bump Mechanism Cover - EC50AC |
| 2a | ECX10334P | Filter Head with Vent Valve - EC50A |
| 2b | ECX5000BP | Filter Head with Vent Valve - EC50AC |
| 3a | ECX11344P | Filter Body with Flow Diffuser - EC50A |
| 3b | ECX5000AP | Filter Body with Flow Diffuser - EC50AC |
| 4 | ECX1322A | Directional Vent Valve with O-Ring |
| 5 | ECX5000C | Clamp Assembly with Springs - EC50AC |
| 6 | ECX360UN | Nickel Plated Sleeve Nut, 5/16" - EC50AC |
| 7 | ECX1014A | Bump Shaft Kit |
| 8 | ECX1040 | Bump Handle Assembly - Xyron |
| 9 | ECX1037B | Bump Handle Grip - Xyron |
| 10 | ECX10029 | Pivot Pin (long) |
| 11 | ECX4236A | Bump Handle Screw Kit |
| 12a | ECX1009 | Bump Shaft, 1/2" - EC50A |
| 12b | ECX5000F | Bump Shaft, 1/2" - EC50AC |
| 13 | ECX10271A | Filter Head Screw Set - EC50A only |
| 14 | ECX1004ASET | Tube Sheet Set (Top and Bottom) |
| 15a | ECX1003 | Diaphragm Gasket - EC50A |
| 15b | ECX50006 | Diaphragm Gasket - EC50AC |
| 16 | ECX1032PAK10 | Flex Tube 16 1/4" Long (Set of 10) |
| 17 | SPX1500NYA | Tube Sheet Hex Screw Set |
| 18 | SP1022CBLK | Plug with Gasket |
| 19 | SP0723 | Ball-Type Drain Valve with Nipple |
| 20 | ECX27091 | Pressure Gauge - Back Mount |
| 21 | ECX12866 | Gauge/Inspection Port Adapter |
| 22 | ECX1287 | O-Ring for Gauge Adapter |
| 23 | ECX1256 | Flow Diffuser with Check Valve |
| 24 | ECX4077B1 | Check Valve |
| 25 | ECX1055 | Flow Controller |

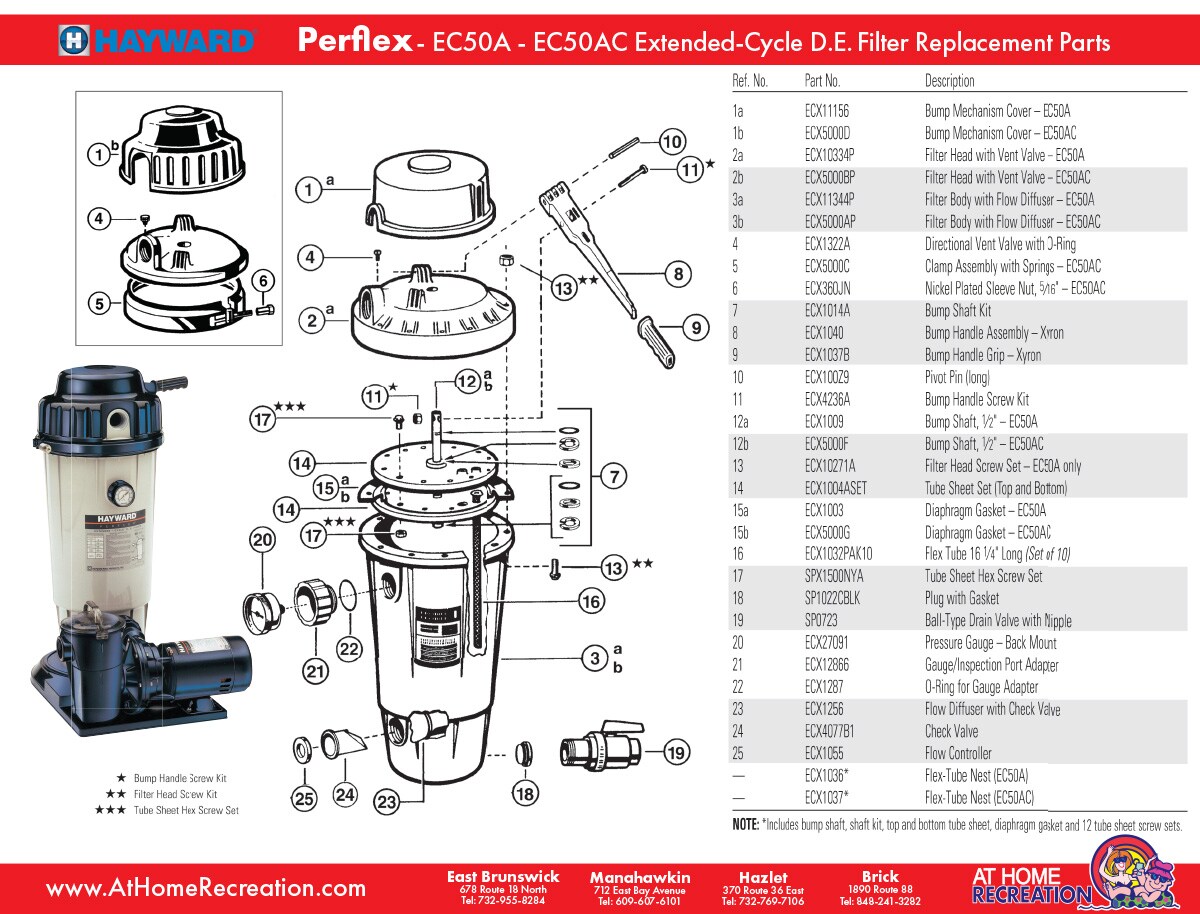

Click to Download PDF File
Hayward Perflex EC50A - EC50AC Series
DE Filter Parts
