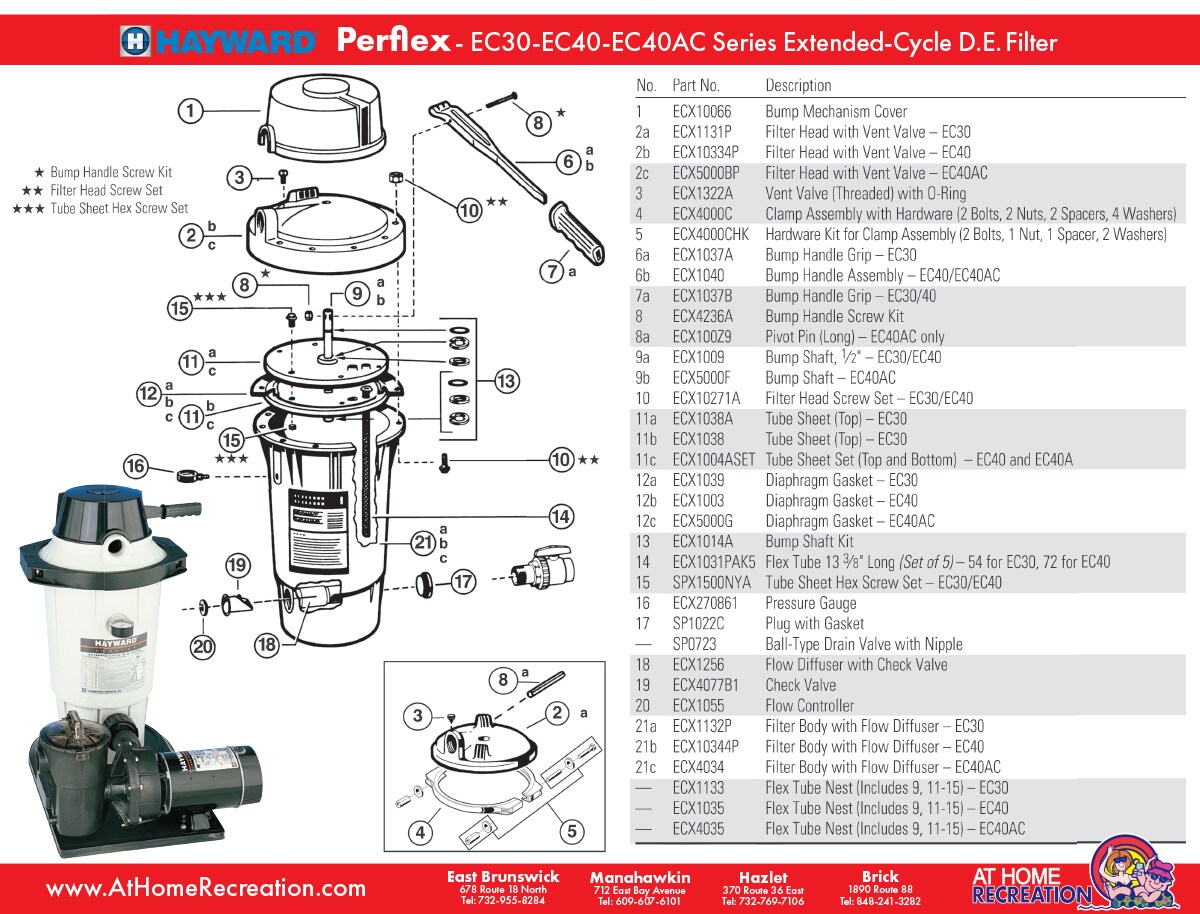

EC30-EC40-EC40AC Series Extended-Cycle D.E. Filter

No.Part No.Description
1ECX10066Bump Mechanism Cover
2aECX1131PFilter Head with Vent Valve - EC30
2bECX10334PFilter Head with Vent Valve - EC40
2cECX5000BPFilter Head with Vent Valve - EC40AC
3ECX1322AVent Valve (Threaded) with O-Ring
4ECX4000CClamp Assembly with Hardware (2 Bolts, 2 Nuts, 2 Spacers, 4 Washers)
5ECX4000CHKHardware Kit for Clamp Assembly (2 Bolts, 1 Nut, 1 Spacer, 2 Washers)
6aECX1037ABump Handle Grip - EC30
6bECX1040Bump Handle Assembly - EC40/EC40AC
7aECX1037BBump Handle Grip - EC30/40
8ECX4236ABump Handle Screw Kit
8aECX100Z9Pivot Pin (Long) EC40AC only
9aECX1009Bump Shaft, 1/2"- EC30/EC40
9bECX5000FBump Shaft-EC40AC
10ECX10271AFilter Head Screw Set - EC30/EC40
11aECX1038ATube Sheet (Top) - EC30
11bECX1038Tube Sheet (Top) EC30
11cECX1004ASETTube Sheet Set (Top and Bottom) - EC40 and EC40A
12aECX1039Diaphragm Gasket - EC30
12bECX1003Diaphragm Gasket - EC40
12cECX5000GDiaphragm Gasket - EC40AC
13ECX1014ABump Shaft Kit
14ECX1031PAK5Flex Tube 13 3/8" Long (Set of 5)-54 for EC30, 72 for EC40
15SPX1500NYATube Sheet Hex Screw Set - EC30/EC40
16ECX270861Pressure Gauge
17SP1022CPlug with Gasket
-SP0723Ball-Type Drain Valve with Nipple
18ECX1256Flow Diffuser with Check Valve
19ECX4077B1Check Valve
20ECX1055Flow Controller
21aECX1132PFilter Body with Flow Diffuser - EC30
21bECX10344PFilter Body with Flow Diffuser - EC40
21cECX4034Filter Body with Flow Diffuser - EC40AC
-ECX1133Flex Tube Nest (Includes 9, 11-15) - EC30
-ECX1035Flex Tube Nest (Includes 9, 11-15) - EC40
-ECX4035Flex Tube Nest (Includes 9, 11-15) - EC40AC

Click to Download PDF File
Hayward Perflex EC30-EC40-EC40AC Series
DE Filter Parts
